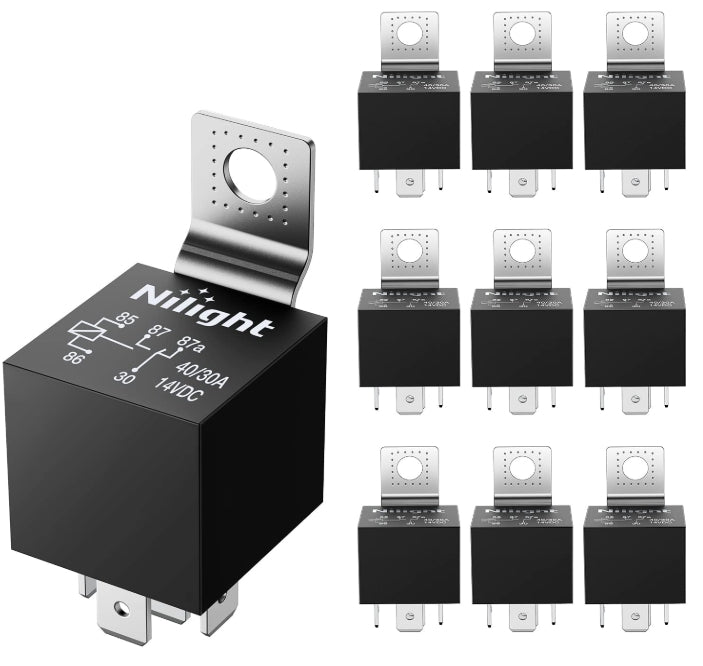

10 Pack SPDT Bosch Style Electrical 12V 30/40 Amp 5-Pin Relays Switch
Regular price
$13.99
Sale price
$19.99
Shipping calculated at checkout.
Description
- 12V 5 Pin SPDT Single Pole Double Throw Electrical Relay.

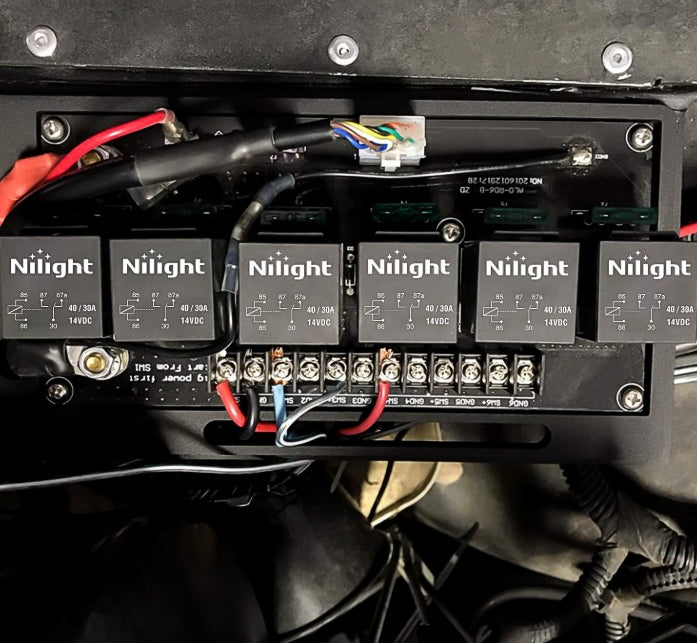

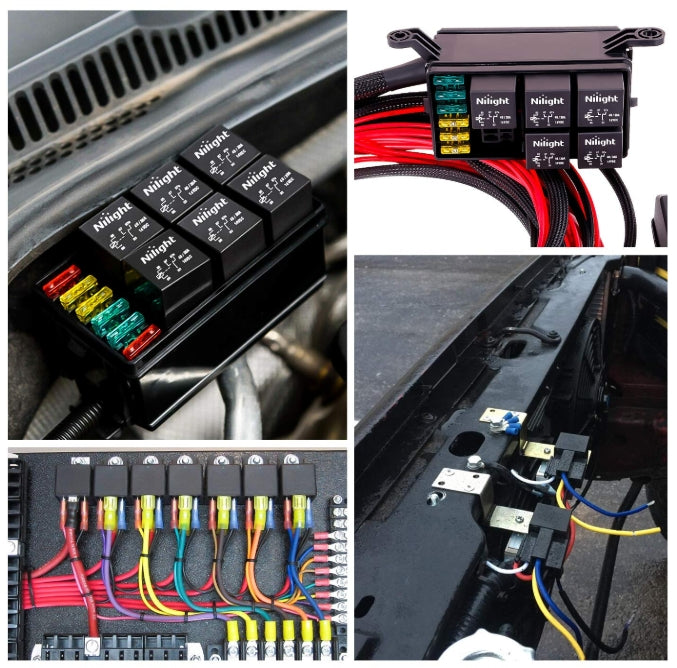

- 40A/30A High Switching Capability. These relays have a universal application and can be used in automotive setups, car sound systems, security systems, and various other applications.

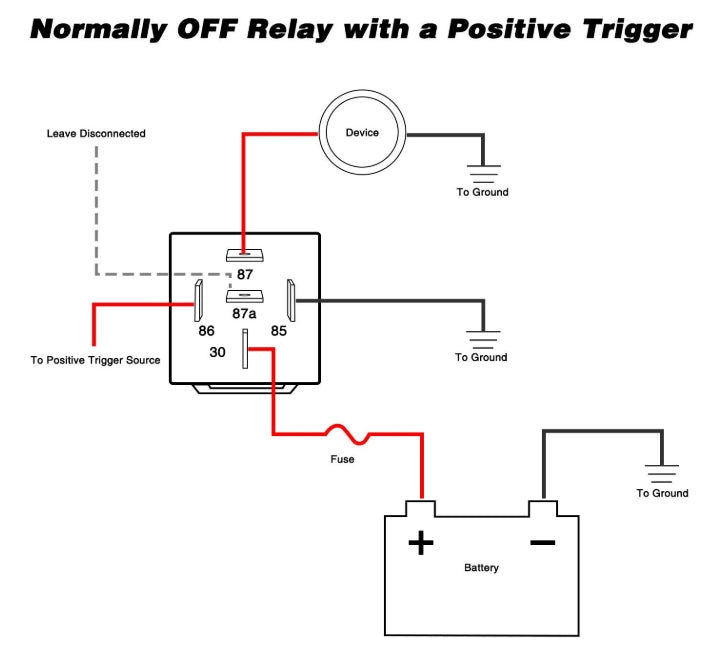

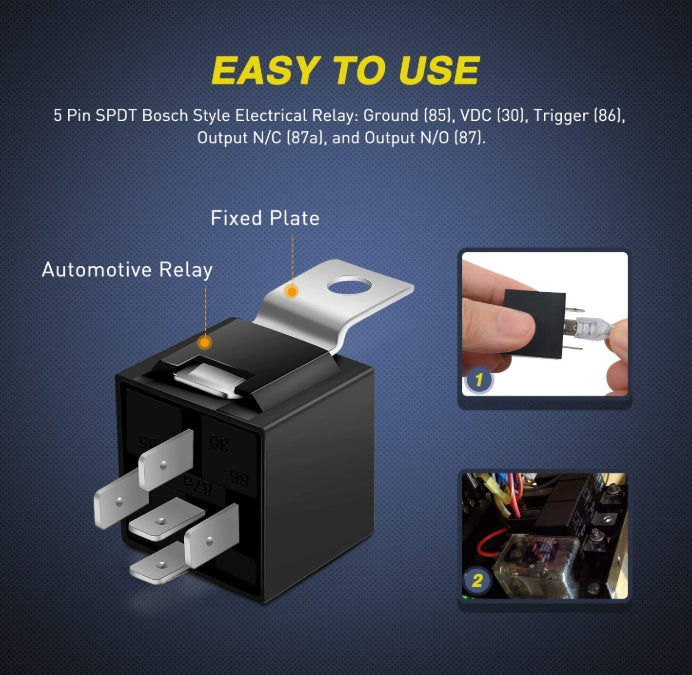

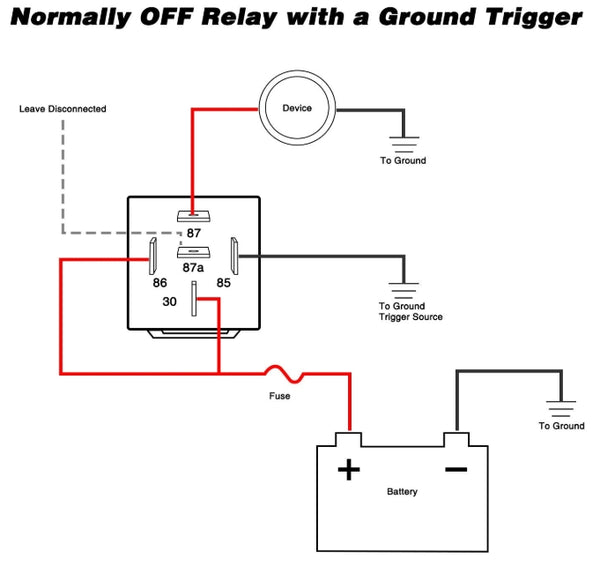

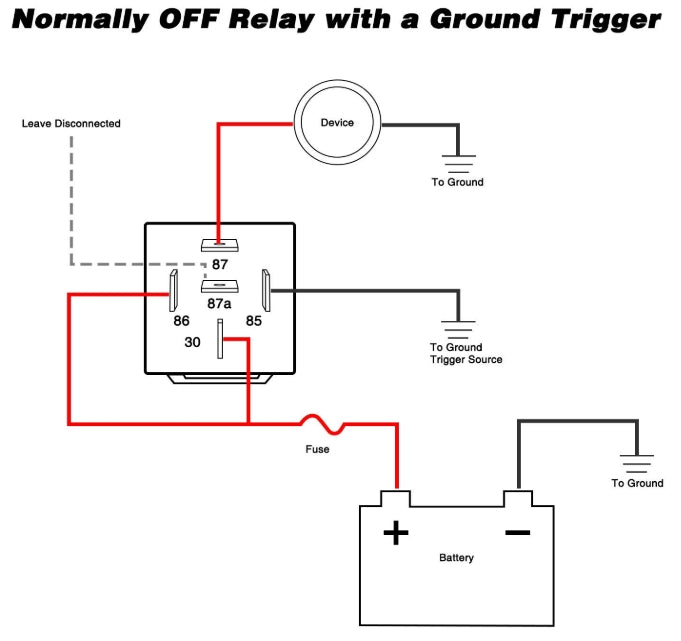

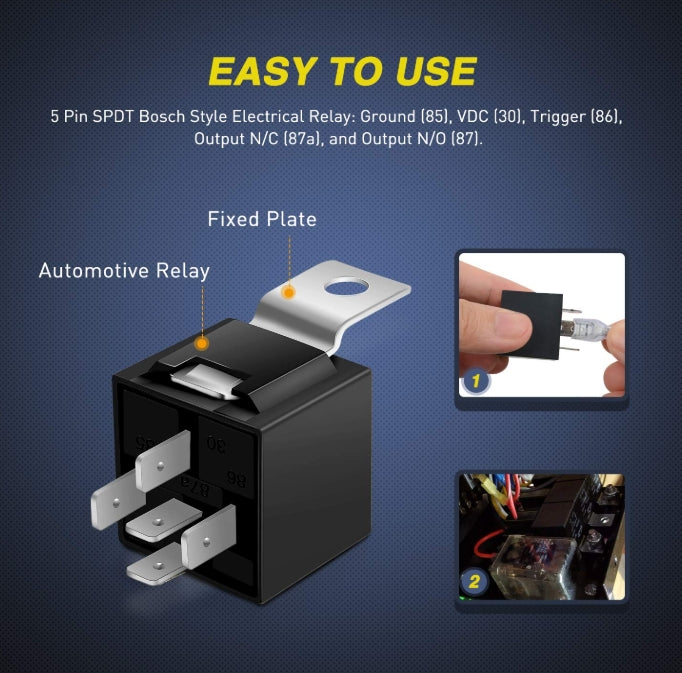

- Pin Specifications: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87).
- These Relays are Interchangeable/Compatible with: All automobiles and devices equipped with a 12 Volt DC power source.
- Package include:10 pack electrical relays.
| Connector Type | Quick Connect |
| Contact Material | Aluminum |
| Contact Type | Normally Closed |
| Current Rating | 30 Amps |
| Mounting Type | Wall Mount |
Specification
| Contact Form | 1A, 1B, 1C, 1U, 2A |
| Contact Material | AgSno2 |
| Max Operating Current | 40A |
| Max Operating Voltage | 27VDC |
| Rated Load（Resistive load） | 1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 500VAC/M (Coil and Contact） |
| Operate/Release Time | 10ms/10ms |
| Terminal Type | Terminal |
