16AWG Amber White Light Bar Wire Harness Kit 2 Leads W/ 12V Push Button Switch | 2 Fuses | 6 Spade Connectors
ABOUT THIS ITEM
- Dual Color Light Control: Upgrade design for amber & white dual color light bar. You can freely opt to use single white driving light, single amber fog light, or white light or amber light together.
- High Protection: Comes with two 15A inline blade fuses and two relays to keep protecting all circuits from overcurrent and short circuits. Makes it always safe.
- Two Leads Available: The wiring harness has two leads available, allowing you to connect two light fixtures. Wire length from power to the first lead and the second lead is 8. 5ft and 11ft.
- Push Button Switch: Easily installed push button with adhesive tape, no worries of drilling hole. The green indicator light button controls the on/off of amber light, red indicator light button controls the white driving light.
- Applicable for dual-color light bars on 12V vehicles such as Jeep, trucks, ATV, UTV Subaru, motorcycles, etc. Package Includes: 1 x Wiring harness kit, 1 x Accessory pack, 1 x Instructions Manual
- Fit Type: Universal Fit
Dual Color Light Bar Wiring Harness Kit- 2 Lead
A customized design solution for dual color light bar.
SPECIFICATION
Wire Length: 8.5ft from power to first lead, 11ft from power to the second lead
Wiring kit Includes: push button switch, 2PCS 15A fuse & fuse holder, 2PCS relay;
Operating Voltage: 12V DC
Max Wattage: 180W; Max Ampere: 15A

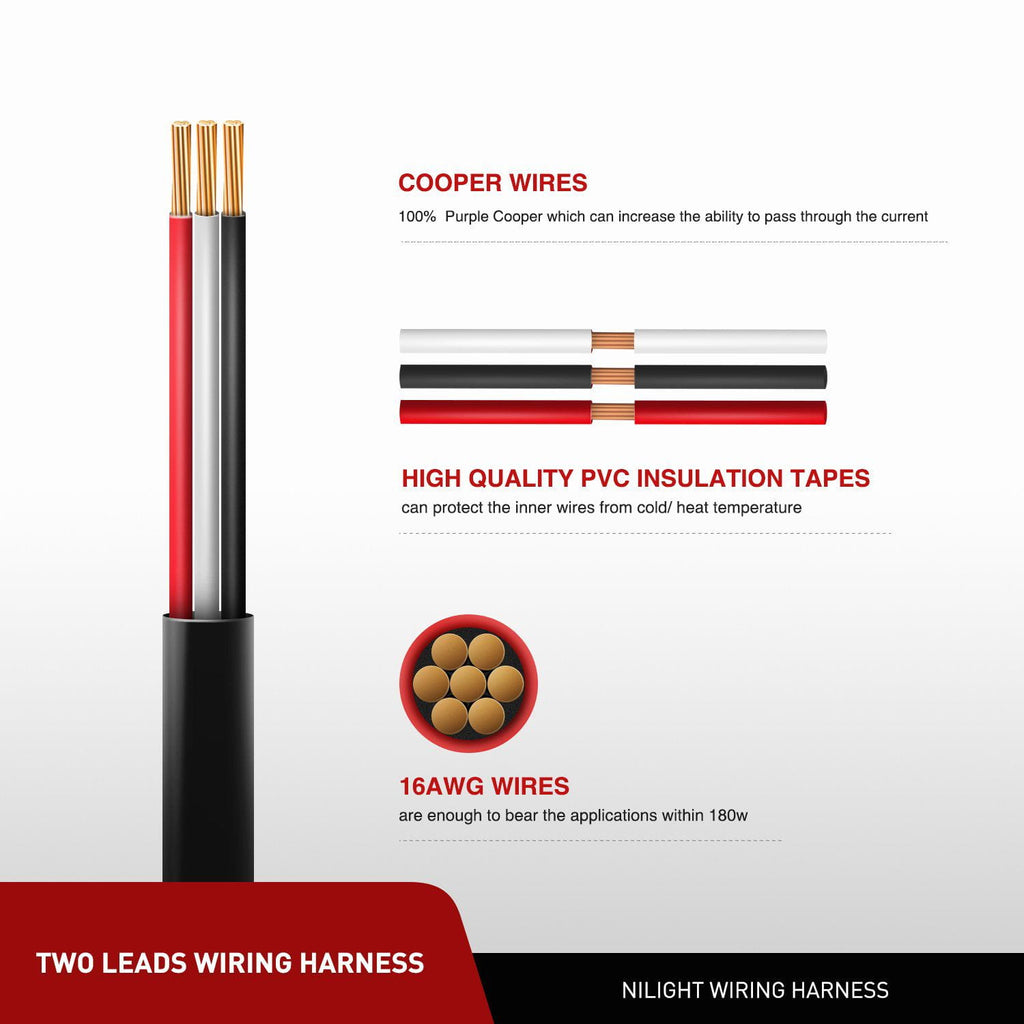

Wire Gauge: 16 AWG;
KEY FEATURES
2 Automotive Relay
Comes with 2 12V 40A automotive relays, high quality made with well conductive pins. Dually and high-efficiently protects the circuit and the lighting system.
2 Inline Blade Fuse
Comes with 2 15A inline blade fuses with a waterproof fuse holder and also 2 extra fuses for future backup use. Super high protection and considerate design.

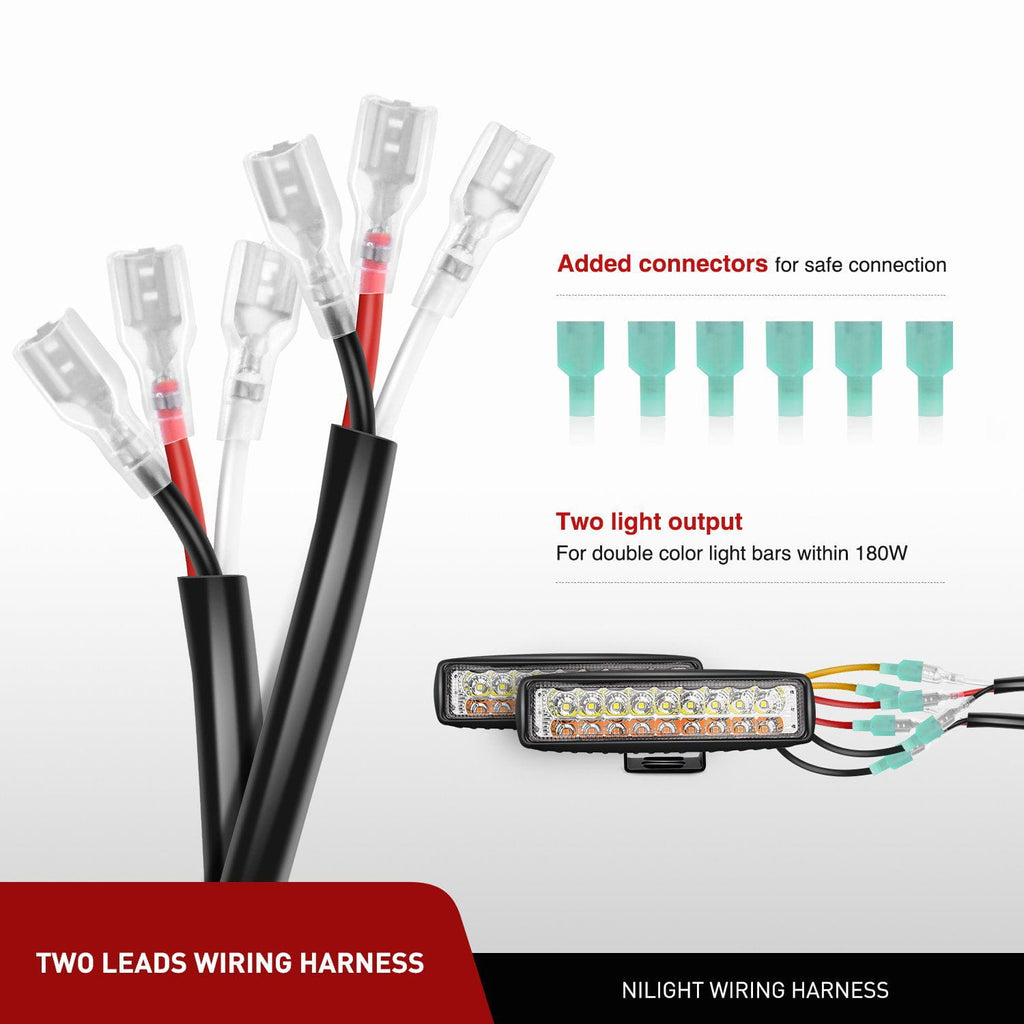

2 Leads Design
2 Leads design for 2 light fixtures. Each lead has three colors of wires, black for negative, red, and white for positive.
Switch & Light Control
Push Button On/Off Switch
The switch has 2 push buttons with green and red indicator lights. Each controls the on/off of one color light.
White Light Control
When you push the button with the red indicator light, the black wire and red wire of the harness will be with negative and positive power respectively to turn on one color mode of the led light.
Amber Light Control
When you push the button with the green indicator light, the black wire and yellow wire of the harness will be with negative and positive power respectively to turn on the other color mode of the led light.
Dual Color Light Control
When you push both buttons, the black, red, and yellow wire of the harness will all be with power to turn on both color modes of the led light.
APPLICATIONS
Off-Road Vehicle Lighting
The wiring harness kit can be widely applied to Jeeps, 4x4, ATVs, UTVs, SUVs, Truck, Cars Motorcycles, Pick-up, Van, Camper, Road Buggy, Sand Rail, Trains, Bus, Tanks, etc. Super bright light beam dispels the darkness and lights up the forward road, a clear view area for safe driving.
Boat Lighting
This wiring harness can be installed on boats, yachts, skiffs, freighters, and ships to enhance the illuminating brightness of the voyage. With a powder coat, the Led light is efficiently waterproof, dustproof, and anticorrosive. Super bright view area to see clear at night, excellent visual effect.
Equipment Lighting
It is suitable for Trailer, Forklift, Excavator, Dozer, Road Roller, Crane, Tractor, harvesters, Grain Drill, Mower, Snowplow, Fire engines, Rescue Vehicle, Camping, Mining, Construction, and another outdoor lighting. The amazingly bright light makes you see the left and right clearly, ensuring working safety at night.
Off-Road Vehicle Lighting
The wiring harness kit can be widely applied to Jeeps, 4x4, ATVs, UTVs, SUVs, Truck, Cars Motorcycles, Pick-up, Van, Camper, Road Buggy, Sand Rail, Trains, Bus, Tanks, etc. Super bright light beam dispels the darkness and lights up the forward road, a clear view area for safe driving
