5 INCH LIFT KIT DODGE 1500 4WD (2002-2005)
OVERVIEW
Give your 02-05 Dodge Ram 1500 an aggressive new look and unparalleled off-road performance with Rough Country's 5-inch Suspension Lift. This all-inclusive kit features everything needed to take your Dodge off the freeway and onto the trails.
Featuring a set of durable lifted knuckles, you'll gain enough ride height to run up to 35-inch tires with proper wheel spacing! A set of differential drop brackets, sway-bar links, bump stop extensions, and integrated sub-frame assembly to keep everything at optimum angles for a factory-like ride, even after lifting. A front and rear steel crossmember bring uncompromising strength and good looks to your truck. Our Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts.
A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Best of all, Rough Country's 02-05 Dodge Ram 1500 Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Maintains factory ride quality
SPECS
SKU | 381.20 |
---|---|
Est. Install Time | 6 - 8 hours |
IN THE BOX
INSTRUCTIONS
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
2002-2005 | 4WD | Dodge | Ram 1500 |
2002-2005 | 4WD | Dodge | Ram 1500 |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
35x12.50R17 | 17x8.5 | 5x5.5 | +0 | - |
35x12.50R17 | 17x8.5 | 5x5.5 | +1 | - |
35x12.50R17 | 17x9 | 5x5.5 | -12 | - |
35x12.50R17 | 17x9 | 5x5.5 | +0 | - |
305/70R17 | 17x9 | 5x5.5 | +0 | - |
35x12.50R17 | 17x9 | 5x5.5 | +1 | - |
305/70R17 | 17x9 | 5x5.5 | +1 | - |
35x12.50R18 | 18x8.5 | 5x5.5 | +0 | - |
295/70R18 | 18x8.5 | 5x5.5 | +0 | - |
35x12.50R18 | 18x8.5 | 5x5.5 | +1 | - |
295/70R18 | 18x8.5 | 5x5.5 | +1 | - |
35x12.50R18 | 18x9 | 5x5.5 | -12 | - |
295/70R18 | 18x9 | 5x5.5 | -12 | - |
35x12.50R18 | 18x9 | 5x5.5 | +0 | - |
295/70R18 | 18x9 | 5x5.5 | +0 | - |
35x12.50R18 | 18x9 | 5x5.5 | +1 | - |
295/70R18 | 18x9 | 5x5.5 | +1 | - |
295/70R18 | 18x10 | 5x5.5 | -25 | - |
35x12.50R18 | 18x10 | 5x5.5 | -19 | Minor Trimming |
295/70R18 | 18x10 | 5x5.5 | -19 | - |
35x12.50R18 | 18x10 | 5x5.5 | -18 | Minor Trimming |
295/70R18 | 18x10 | 5x5.5 | -18 | - |
35x12.50R20 | 20x9 | 5x5.5 | -12 | - |
35x12.50R20 | 20x9 | 5x5.5 | +0 | - |
295/60R20 | 20x9 | 5x5.5 | +0 | - |
35x12.50R20 | 20x9 | 5x5.5 | +1 | - |
295/60R20 | 20x9 | 5x5.5 | +1 | - |
35x12.50R20 | 20x10 | 5x5.5 | -19 | Minor Trimming |
295/60R20 | 20x10 | 5x5.5 | -19 | Minor Trimming |
35x12.50R20 | 20x10 | 5x5.5 | -18 | Minor Trimming |
295/60R20 | 20x10 | 5x5.5 | -18 | Minor Trimming |
35x12.50R22 | 22x10 | 5x5.5 | -19 | Minor Trimming |
285/55R22 | 22x10 | 5x5.5 | -19 | - |
35x12.50R22 | 22x10 | 5x5.5 | -18 | Minor Trimming |
285/55R22 | 22x10 | 5x5.5 | -18 | - |
35x12.50R22 | 22x12 | 5x5.5 | -44 | Trimming Required |

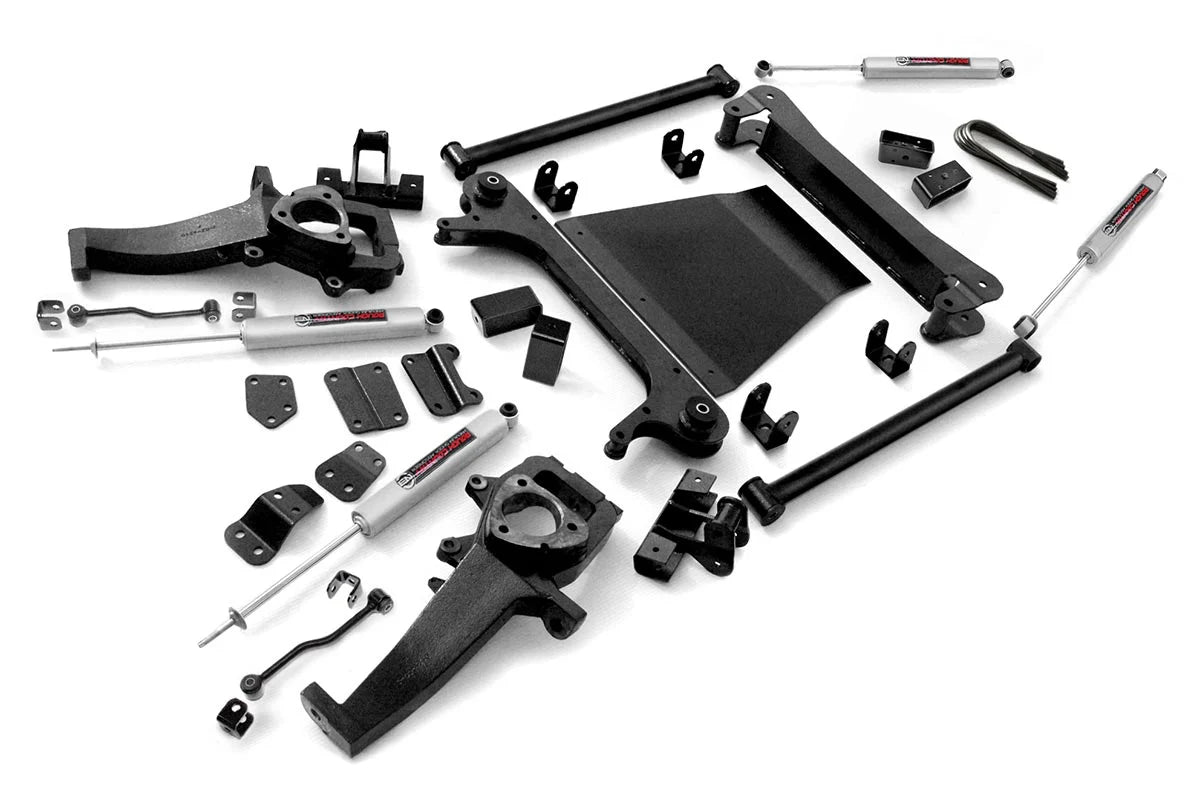

- Lifted knuckles
- Integrated sub-frame assembly
- Differential drop brackets
- Stinger bars
- Sway-bar links
- Skid plate
- Bump-stop extensions
- Hardware
- 3in lift blocks
- U-bolts
- Hardware
- (4) Premium N3 series
